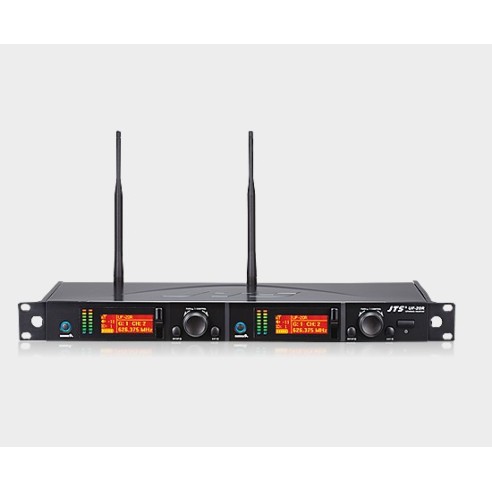

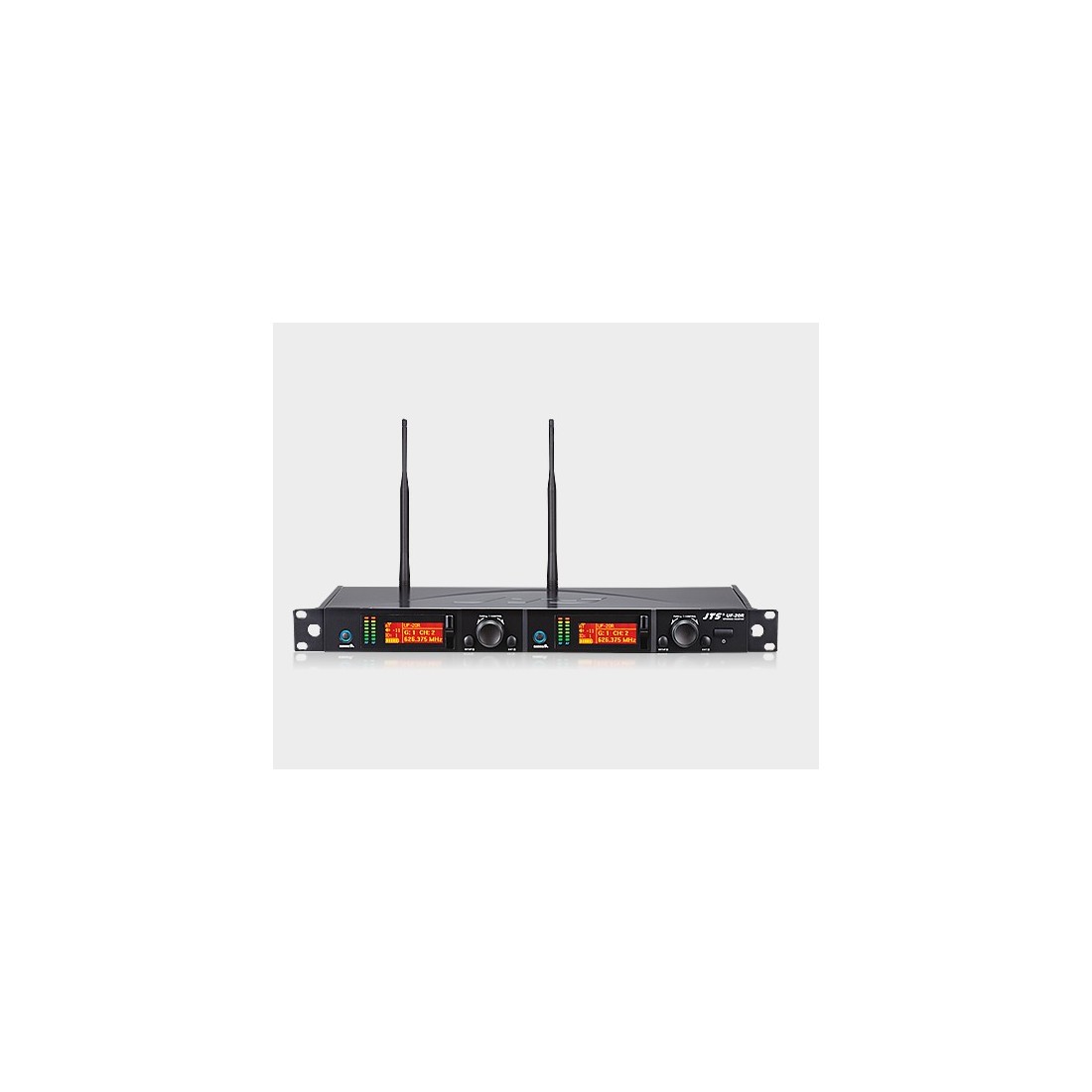

JTS UF20R - UF20R RECEPTOR DOBLE JTS

UF-20R * UHF True diversity technology renders 200-480 meters of operation distance * máximo 2400 to 3000 selectable frequencies across 60 to 75 MHz * Preset 15 groups cada of up to 63 compatible canales * User programmable 6 groups cada of 64 canales * Free space scan function * JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a botón * JTS LCX circuit diseño technology minimizes Companding ruido NEWEST FEATURE: * el/la es now not only sends el/la frecuencia data but also transmitters RF potencia, sensibilidad, low cut, key lock y users name. * RF NO señal alert function. * AF MUTE alert function. * Transmitter LOW BATTERY alert function. * Built in ecualizador * potencia / Antenna cascading salida provided. especificaciones UF-20R frecuencia Preparation PLL Synthesized control frecuencia Setting JTS patented obstacles-free RF REMOSET Carrier frecuencia rango UHF 470~960 MHz canal Dual Bandwidth 60~75MHz Wideband S / N relación > 108dB (A) T.H.D <0.5% @ 1KHz Chassis 1U estándar metal chassis Preset canales / Group * From group 1 ~ 15 up to 63 interference-free compatible canales. * 690 preset canales / group y 3000 selectable frequencies across 60 to 75 Hz Bandwidth. * User programmable from U1 ~ U6 cada of 64 canales reserved. pantalla LCD pantalla Contents Group, canal, frecuencia, Antenna A / B, RF / AF nivel medidor, Mute pantalla, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch sensibilidad 6dB?V, at S / N> 80dB Receiving Mode True diversity audio salida nivel máximo 6dBu Receiving Mode True diversity AF salida impedancia 600? frecuencia respuesta 50Hz ~ 18kHz, con high-pass filter Squelch Pilot Tone & ruido Mute potencia Supply 100 ~ 240V or 12V DC salida conector 2 xlr balanceado Socket 2 Ø6.3mm no balanceado phone jack Dimension (m / m) 480mm (W) 45Mmm (H) 260mm (D) Notes Actual product especificaciones puede vary depending on model y region.
